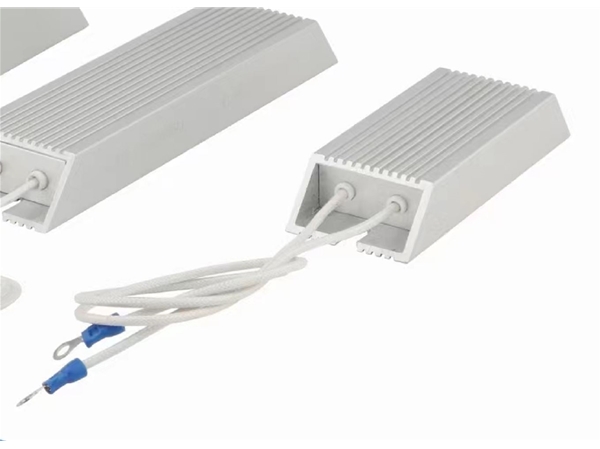

Anti-surge alumina wire wound resistors TAHS series

HIGH STABILITY PRECISION WIREWOUND RESISTORS TRAPEZIUM ALUMINA HOUSED WIRE WOUND RESISTORS FEATURES Advanced alloy technology · Very low TCR: lower than ±10ppm/℃. · Tolerance up to ±0.5% · Excellent overall stability: Class 0.5 · Suitable for the atrocious environment: such as high attitude area and extreme cold area. · Very low noise and voltage coefficient · Non-inductance winding available under request · Perfect pulse loading capability · Compliant to RoHS directive 2011/65/EU · Compliant to REACH (EC No. 1907/2006)) (last updated: 27/06/2018)

/uFile/1906/file/2022102113461338.pdf

HIGH STABILITY PRECISION WIREWOUND RESISTORS

TRAPEZIUM ALUMINA HOUSED WIRE WOUND RESISTORS

FEATURES

Advanced alloy technology

· Very low TCR: lower than ±10ppm/℃.

· Tolerance up to ±0.5%

· Excellent overall stability: Class 0.5

· Suitable for the atrocious environment:

such as high attitude area and extreme cold area.

· Very low noise and voltage coefficient

· Non-inductance winding available under request

· Perfect pulse loading capability

· Compliant to RoHS directive 2011/65/EU

· Compliant to REACH (EC No. 1907/2006)) (last updated: 27/06/2018)

APPLICATIONS

· Current sensor for test and measuring instruments

· Power supply with high reliability

· Components burn-in devices

· Medical equipment

· Military electronics
