Thunder Precision Resistor Co., Ltd. developed a ceramic resistor modules with 30kJ single pulse withstand energy and the extremely high pulse withstand voltage of the module is up to 24,000V in oil and surge pulse withstand voltage is up to 170kV.
Ultra-high voltage pulse loading

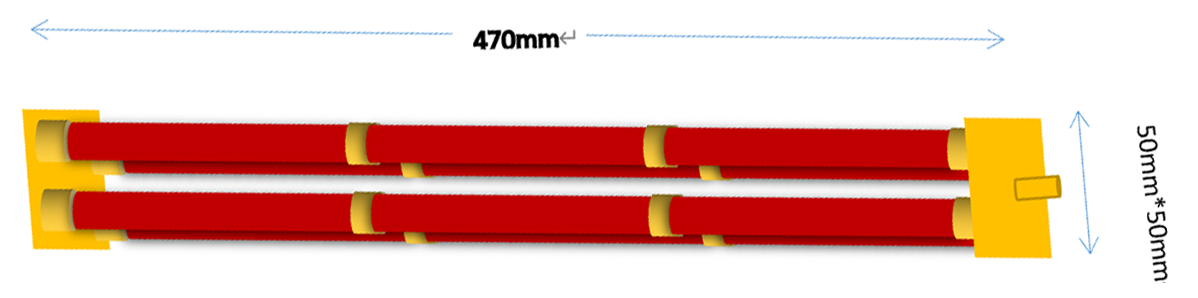

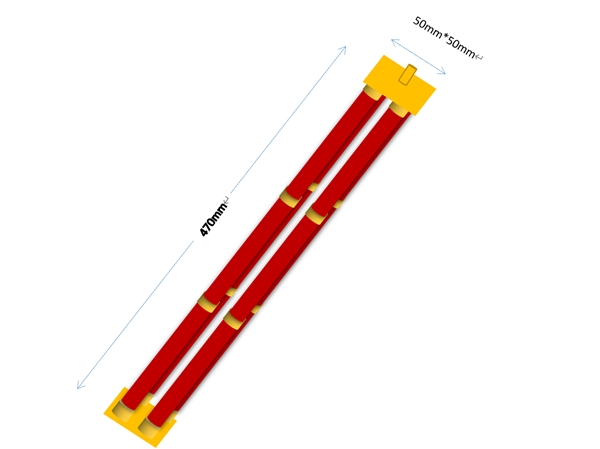

Ceramic Composition Resistor Modules
HPC inorganic ceramic composition resistors are high peak power and high energy absorption resistors.
The well mixed conductive particles and ceramics sintered with semiconductor hybrid process technology and powder metallurgy technology into a high stable physical structure with high strength comparable to ceramics, high energy density, high withstanding voltage and current.
The tested product has a pulse energy resistance of 270J/cm³ (Effective size) and total 30kJ single pulse withstand energy.
The resistors the product shows perfect non-inductive performance of nH level in the ultra-high frequency circumstances.
The extremely high pulse withstand voltage of the module is up to 24,000V in oil and surge pulse withstand voltage is up to 170kV.
The modules is compliant to RoHS directive 2011/65/EU and REACH (EC No. 1907/2006)) (last updated: 27/06/2018).
